Rod ends

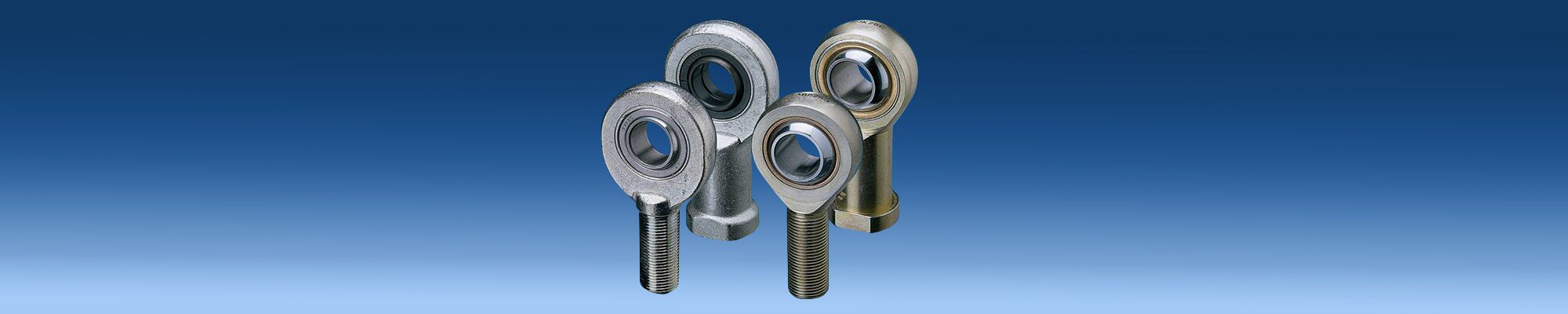

Not only spherical plain bearings but also all types of rod ends belong to the standard product range of WSW.


Rod ends are units that consist of a housing and a spherical plain bearing. They are available with right hand male or female thread (for left-hand thread please contact WSW). For the standard mounted bearings please look on the page of the different rod end types. It is also possible to assemble different bearings (e.g. with seals or maintenance-free ones). Please compare the outer diameter and the width of the outer ring to find out which bearing will fit.

WSW can supply various types of rod ends, both maintenance-free and requiring maintenance. In case you need a stainless steel rod end please contact us.

Furthermore, the rod ends are also available with a special coating in order to withstand the special requirements of the offshore industry.

Type Maintenance Characteristics Informations Comparsion No.: Search criteria
SI..C
DIN ISO: 12 240-4
Series: E
hardchrome/ PTFE composite material
maintenance free

Dimensions:
(5-80) mm
Temperatures:
-50°C up to +150°C

  • maintenance free rod ends with male thread

  • Outer ring of carbon steel, pressed around the inner ring with sliding surface of PTFE-composite material

  • Inner ring of bearing steel, hardened, sliding surface treated with chromium pl
Features:
The inner rings are composed of hardened bearing steel with a hardchrome-plated sliding surface. The outer rings are composed of steel with PTFE-composite material which is pressed around the inner ring.
(Page: 118)
SI..C, GIR..UK, TFI..FKB, SL..C, EI..D, FI.., EI..D, SI..C, GIR..UK, EF.., IEI..W
SI..ET-2RS
DIN ISO: 12 240-4
Series: E
hardchrome/ PTFE- fabric
maintenance free

Dimensions:
(5-80) mm
Temperatures:
-30°C up to +130°C

  • maintenance free rod ends with male thread

  • Outer ring of bearing steel, fractured, hardened and phosphated, with lip seals on both sides, with sliding surface of PTFE-fabric

  • Inner ring of bearing steel, hardened, sliding surface
Features:
The outer rings are composed of hardened bearing steel with firmly glueed PTFE-fabric. The inner rings are composed of a hardchrome-plated sliding surface.
(Page: 118)
SIA..TE-2RS, GIR..UK-2RS, TFI..FKB-2RS/, TFI..T-2RS, SL..C-2RS, EI..D-2RS, FI..U-2RS, GK..L, EI..D-2RS, SI..C-2RS, GIR..UK-2RS, IEI..W-2RS
SIS..ET-2RS
DIN ISO: 12 240-4
Series: E
hardchrome/ PTFE- fabric
maintenance free

Dimensions:
mm
Temperatures:
-30°C up to +130°C

  • maintenance free rod ends with male thread

  • Outer ring of bearing steel, fractured, hardened and phosphated, with lip seals on both sides, with sliding surface of PTFE-fabric

  • Inner ring of bearing steel, hardened, sliding surface
Features:
The outer rings are composed of hardened bearing steel with firmly glueed PTFE-fabric. The inner rings are composed of a hardchrome-plated sliding surface.
(Page: )
SIS..ET-2RS, SI..TE-2RS, TFI..T-2RS MAG., SLM..C-2RS, FIM..U-2RS
SI(J)K..C
DIN ISO: 12 240-4
Series: K
steel/ PTFE
maintenance free

Dimensions:
(5-30) mm
Temperatures:
Features:

(Page: 122)
SIK..C, SIKB..F, GIKR..PW, TFI..PW, SU..PW, SFCP.., PHS..EC, TSF..C, BEF..(R), FBF.., IKI..W
SIKP..C
DIN ISO:
Series:
steel/ PTFE
maintenance free

Dimensions:
(5-35) mm
Temperatures:
Features:

(Page: 122)
SI..T/K.00, SGS..
SA..C
DIN ISO: 12 240-4
Series: E
hardchrome/ PTFE composite material
maintenance free

Dimensions:
(5-80) mm
Temperatures:
-50°C up to +150°C

  • maintenance free rod ends with male thread

  • Outer ring of carbon steel, pressed around the inner ring with sliding surface of PTFE-composite material

  • Inner ring of bearing steel, hardened, sliding surface treated with chromium pl
Features:
The inner rings are composed of hardened bearing steel with a hardchrome-plated sliding surface. The outer rings are composed of steel with PTFE-composite material which is pressed around the inner ring.
(Page: 120)
SA..C, GAR..UK, TFE..MKB, TFE..T, SM..C, EA..D, FE..U, EA..D, SA..C, GAR..UK, GAR..UK, EM.., IEA..W
SA..ET-2RS
DIN ISO: 12 240-4
Series: E
hardchrome/ PTFE- fabric
maintenance free

Dimensions:
mm
Temperatures:
-30°C up to +130°C

  • maintenance free rod ends with male thread

  • Outer ring of bearing steel, fractured, hardened and phosphated, with lip seals on both sides, with sliding surface of PTFE-fabric

  • Inner ring of bearing steel, hardened, sliding surface
Features:
The outer rings are composed of hardened bearing steel with firmly glueed PTFE-fabric. The inner rings are composed of a hardchrome-plated sliding surface.
(Page: 120)
SAA..TE-2RS, GAR..UK-2RS, TFE..MKB-2RS/, TFE..T-2RS, SM..C-2RS, EA..D-2RS, FE..U-2RS, EA..D-2RS, SA..C-2RS, GAR..UK-2RS, GAR..UK-2RS, IEA..W-2RS
SAS..ET-2RS
DIN ISO: 12 240-4
Series: E
hardchrome/ PTFE- fabric
maintenance free

Dimensions:
mm
Temperatures:
-30°C up to +130°C

  • maintenance free rod ends with male thread

  • Outer ring of bearing steel, fractured, hardened and phosphated, with lip seals on both sides, with sliding surface of PTFE-fabric

  • Inner ring of bearing steel, hardened, sliding surface
Features:
The outer rings are composed of hardened bearing steel with firmly glueed PTFE-fabric. The inner rings are composed of a hardchrome-plated sliding surface.
(Page: )
SAS..ET-2RS, SA..TE-2RS, TFE..T-2RS MAG., SMM..C-2RS, FEM..U-2RS
